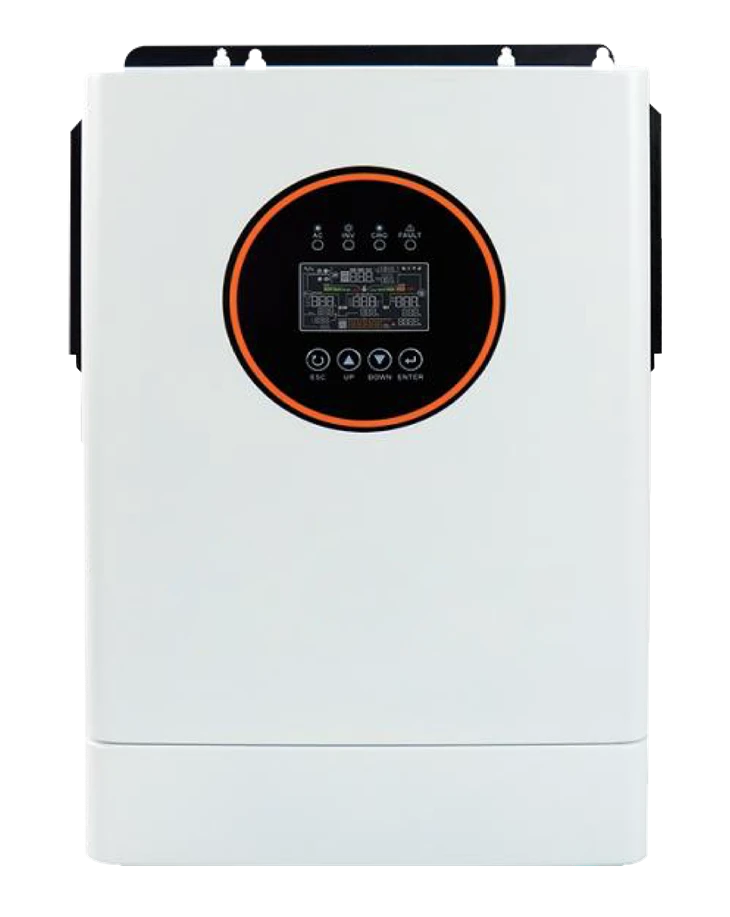

3.6kW / 5kW Single-phase Off-grid Inverters

The FY-APS3600-24 / FY-APS5000-24 are 3.6kW / 5kW single-phase off-grid inverters for 24VDC battery systems. They integrate a solar charger of up to 160A MPPT and an AC charger of up to 160A, and support lithium/lead-acid batteries, dual AC output, Meter/CT connection, generator ATS control, and grid-feed, with optional WiFi/4G. They target residential off-grid, backup power, and small-scale PV energy storage applications.



Category	FY-APS3600-24	FY-APS5000-24
AC Input	208/220/230/240V; 90–280V (NORMAL), 70–280V (UPS); 50/60Hz auto-adaptive	Same as left
AC Output	Rated 3.6kW, surge 7.2kVA, pure sine wave, PF=1, transfer 10ms (APP/UPS)/20ms (GEN)	Rated 5kW, surge 10kVA, transfer 10ms (normal/UPS)
Overload Capability	60s@102–110%; 10s@110–130%; 3s@130–150%; 0.2s@>150%	1min@102–120%; 10s@>120%
PV Charging	MPPT, 18A/5000W, MPPT 40–450V, open-circuit 500V, max charge 100A	MPPT, 27A/9000W, MPPT 60–450V, open-circuit 500V, max charge 160A
AC Charging	Max 100A; PV+AC combined max 100A	Max 160A; PV+AC combined max 160A
Battery	24VDC, float 27V, overcharge protection 30.5V, lithium/lead-acid, lithium activation	Same as left
Efficiency	Max 92.7% in battery mode @24VDC	Max 93.5% in battery mode @24VDC
Communication/Monitoring	RS485/CAN/RS232; WiFi (optional/built-in/external), 4G (optional)	Same as left
Protection/Environment	IP43, -10 to 60°C, 420×284×94mm, 6.2kg, 2-year warranty	IP43, -10 to 60°C, 410×336×110mm, 8.4kg, 2-year warranty



Key Features: Built-in solar charger of up to 160A, wide PV input of 40–450V, max 27A PV input, dual AC output, Meter/CT connection support, lithium/lead-acid compatibility with lithium activation, generator ATS control support, grid-feed, and optional WiFi/4G. Regarding parallel operation, the table marks the 3600 model as "Parallel Operation Support: NA" and leaves the cell blank for the 5000 model - the material does not clearly confirm parallel capability, so it should be verified with the official datasheet.





1. Very Large PV Charging Capability - Up to 160A/9000W on the 5kW Model

The FY-APS5000-24 offers max PV input power of 9000W, max PV input current of 27A, and max PV charge current of 160A - very generous PV charging capability for a 5kW unit, able to accommodate a much larger PV array and improve daytime self-consumption and charging speed.

The FY-APS3600-24 offers 18A/5000W with 100A charging - also a strong configuration at the 3.6kW level.

At 24V, 160A charging corresponds to roughly 3.8kW of charging power - significantly stronger than typical models in the same class.

2. Wide PV Input Voltage Range (40–450V, Open-Circuit 500V)

The wide MPPT operating voltage range enables flexible PV string design, accommodating different series/parallel configurations, reducing line losses, and simplifying wiring.

The 500V open-circuit voltage leaves design margin for strings, which is safer when open-circuit voltage rises at low temperatures.

3. Dual PV + AC Charging, Up to 160A Combined

PV and AC can charge simultaneously, with a combined max of 160A (100A for the 3600 model). When sunlight is insufficient or a fast recharge is needed, backup power can be restored quickly, shortening outage recovery time.

4. Dual AC Output + Meter/CT Connection + Generator ATS Control + Grid-Feed

Dual AC output allows direct supply to two load circuits, reducing external distribution costs.

Meter/CT connection support enables energy metering and anti-reverse-flow/energy management - suitable for grid-connected or metering-required scenarios.

Generator ATS control support enables automatic switching to generator supply when the grid is absent, improving supply continuity for off-grid systems - suitable for areas with unstable grid.

Grid-feed capability extends application flexibility for surplus export/grid-connected operation.

5. Good Battery Compatibility with Lithium Activation

Supports both lithium and lead-acid batteries, accommodating different battery inventories and cost preferences; float charge 27V and overcharge protection 30.5V are clearly specified.

The lithium battery activation function can wake a battery from sleep/protection status, improving system availability and reducing on-site maintenance.

6. Pure Sine Wave Output + Strong Overload Capability

Pure sine wave, PF=1, suitable for inductive loads and sensitive equipment.

Strong overload capability: the 3600 model supports 60s@102–110%, 10s@110–130%, 3s@130–150%, 0.2s@>150%; the 5000 model supports 1min@102–120%, 10s@>120% - good tolerance for motor startup surges.

7. High Efficiency

Max efficiency in battery mode of 92.7% (3600) / 93.5%

8. Wide AC Input and Fast Transfer

Wide AC input range (NORMAL 90–280V, UPS 70–280V) adapts to grid fluctuations and generator input.

Transfer time of 10ms (APP/UPS/normal)/20ms (GEN) - good backup transfer experience; 50/60Hz auto-adaptive - strong applicability for export/multi-region use.

9. Flexible Communication and Monitoring

Full set of RS485/CAN/RS232 interfaces for easy integration into energy management systems.

WiFi supports optional/built-in/external form factors, plus optional 4G - flexible monitoring options suitable for remote O&M.

10. Structure and Environmental Adaptability

IP43 protection, operating temperature -10 to 60°C, max operating altitude 4000m (derating above 1000m) - adapts to various installation environments.

Compact size and moderate weight (6.2kg / 8.4kg) for easy installation and handling.



Positioning: 3.6kW/5kW-class off-grid/backup inverters for 24V battery systems with multi-source input ("PV + grid + generator + battery"), highlighting very large PV charging capability (up to 160A/9000W), wide PV voltage range, dual AC output, Meter/CT connection, generator ATS control, and lithium compatibility - suited to small-to-medium systems requiring high PV self-consumption, backup continuity, and energy management.
