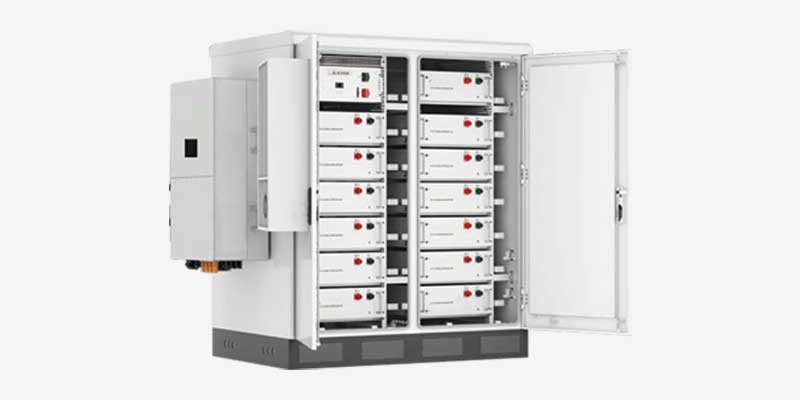

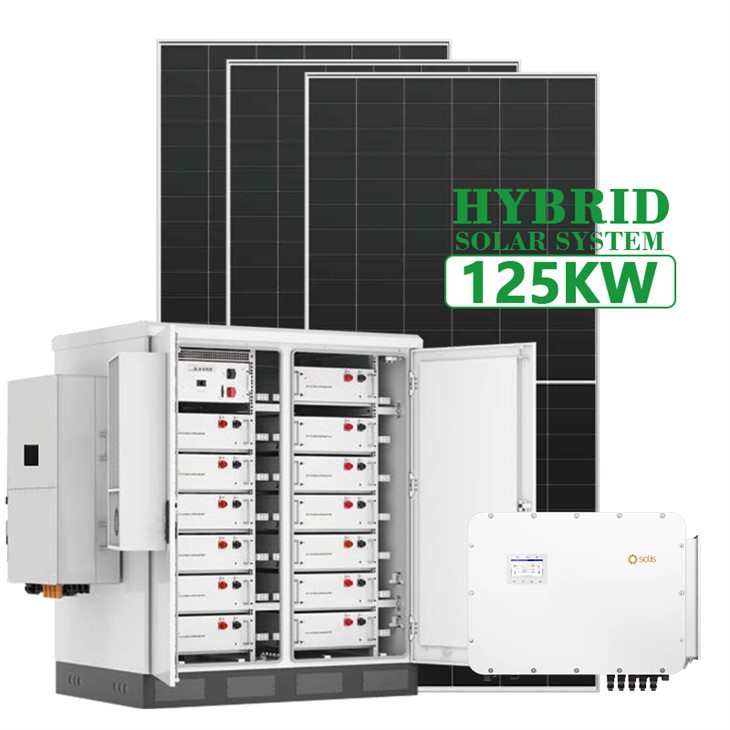

The characteristics of the 125kW energy storage system

The 125kW energy storage system is the main model in the current industrial and commercial energy storage market. With its high single-unit power and larger supporting capacity (typically 261kWh), it can better meet the needs of medium-sized industrial and commercial parks, photovoltaic-storage-charging stations and other scenarios.

Main technical parameters

Main technical parameters (taking the 125kW/261kWh system as an example)
The mainstream configurations of 125kW systems in the current market are highly similar. The following are typical parameters:

Parameter Category Typical Parameter Value
Rated Power 125 kW
Battery Capacity 261 kWh (based on 314Ah cells)
Cell Type Lithium Iron Phosphate (LFP), with cycle life ≥ 8000 times
AC Voltage 400V / 380V, three-phase four-wire
Temperature Control Method Intelligent liquid cooling (for battery PACK), PCS is air cooling
Protection Grade Overall machine IP54, battery PACK IP67
Fire Protection System PACK-level perfluorohexane + cabinet aerosol/water fire protection
Communication Protocol Modbus TCP/RTU, CAN, RS485
Maximum System Efficiency ≥ 91.5%

Detailed display

01.

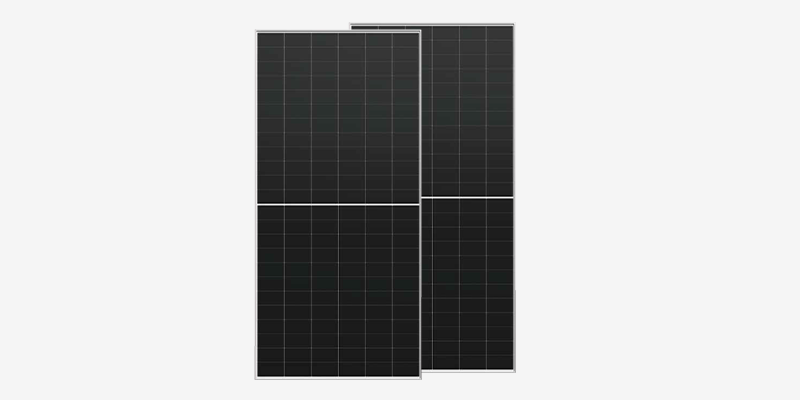

Solar Panels

According to customer needs, with different powesolar panels Efficiency up to:23.0% High quality Warranty: 25 years

02.

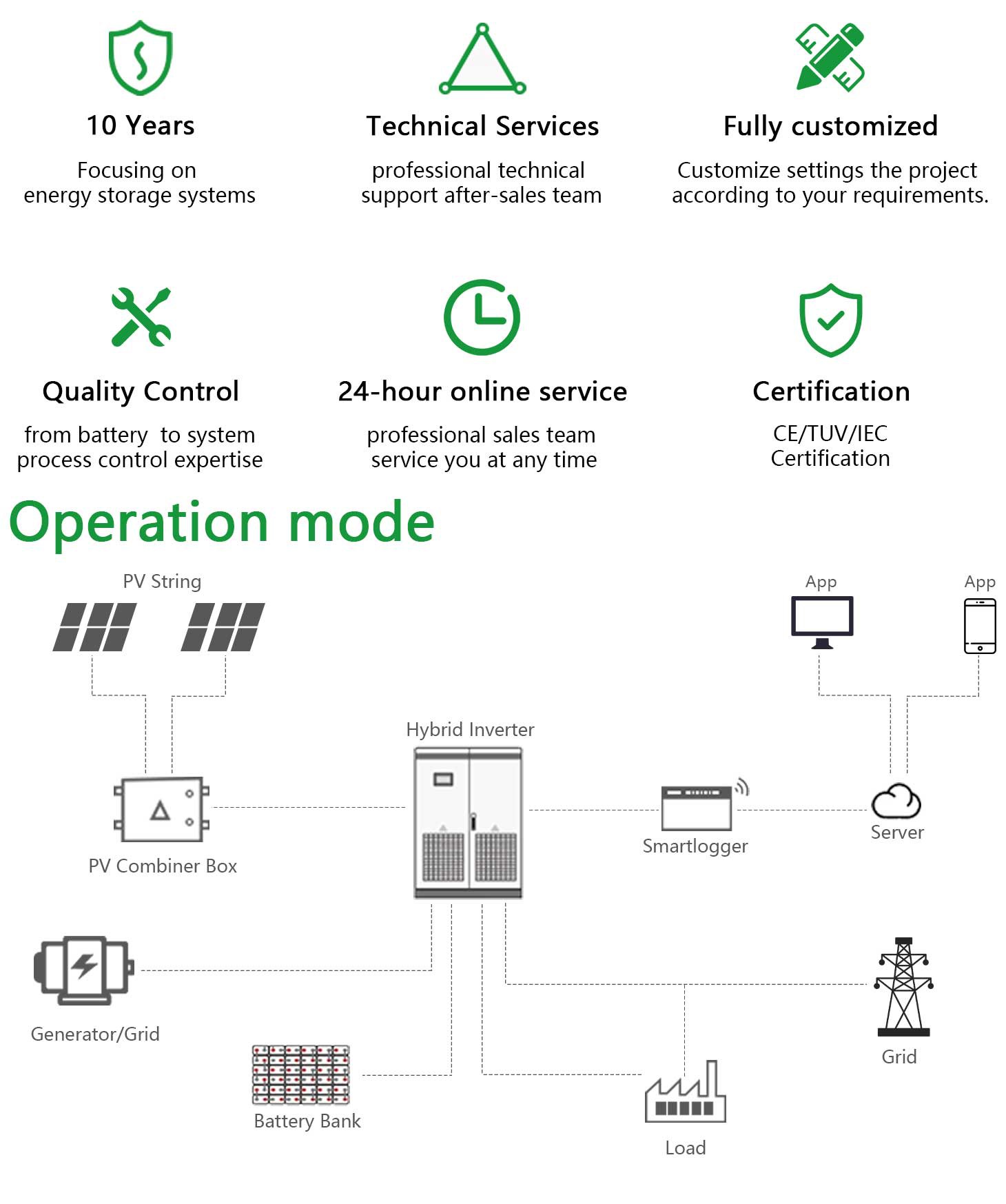

Hybrid inverter

The flexible working mode with strong load adaptability, intelligent battery management, support for PV, grid, DG, and the ability to seamlessly switch between grid-connected and off-grid modes for the load simultaneously.
